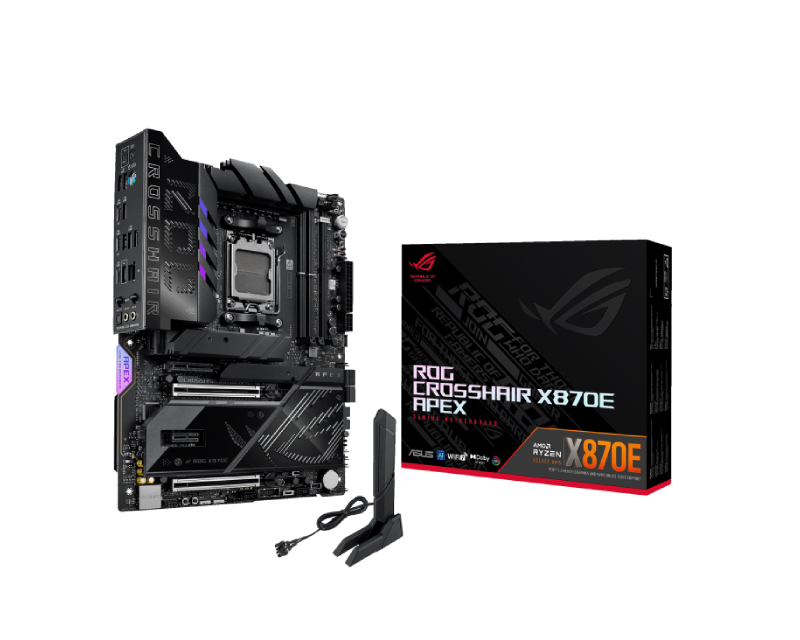

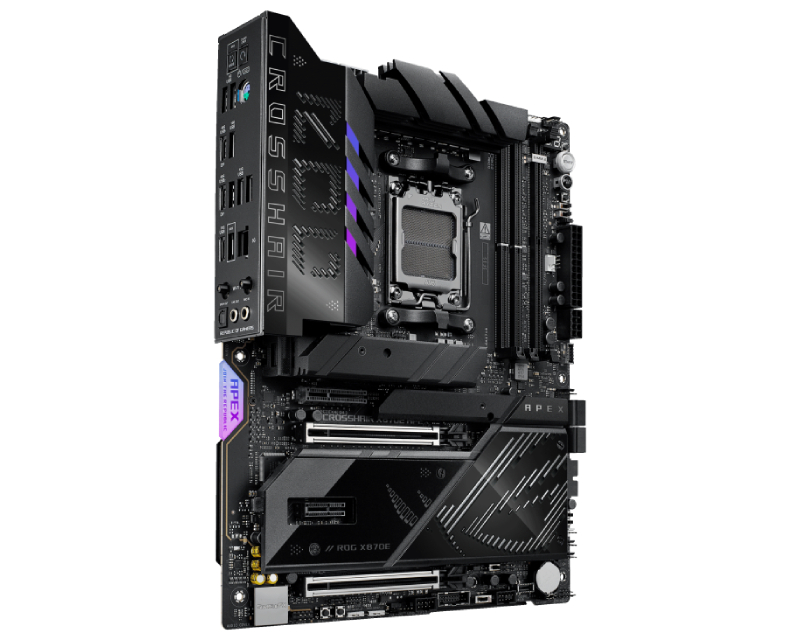

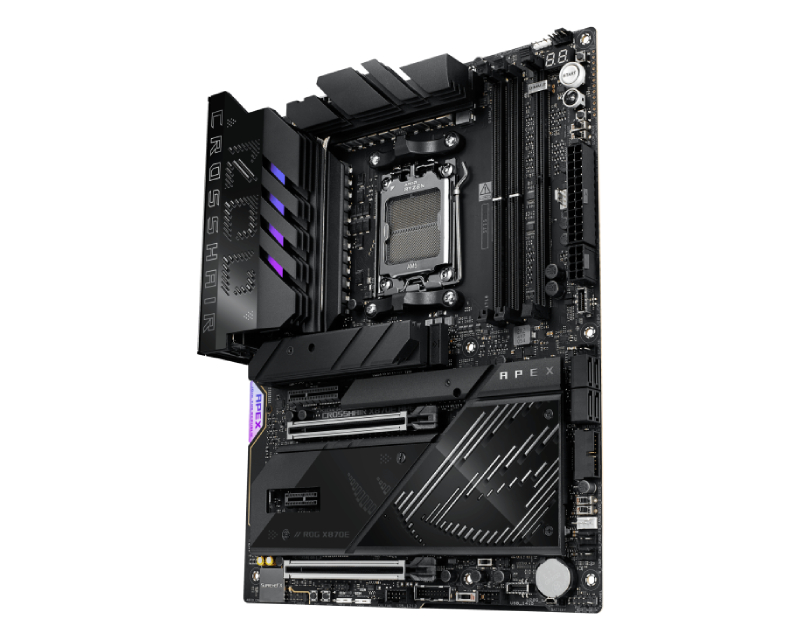

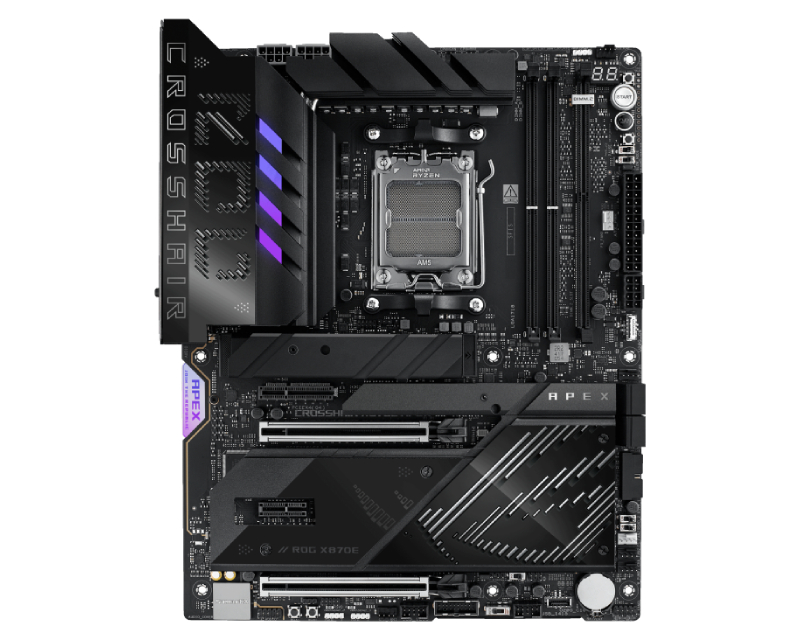

ASUS ROG CROSSHAIR X870E APEX matična ploča

Opis proizvoda
Osnovne karakteristike	Procesorsko ležište (socket): AMD AM5, Čipset: AMD X870E,
Memorija	Tip memorije: DDR5, Memorijski slotovi: 2x DDR5, Podržane memorije: Podržava DDR5 memorije do 9.600+MT/s (O.C.), Maksimalna ukupna memorija: 128GB, Ostale osobine: Podrška za non-ECC UDIMM memory, Podrška za ECC UDIMM memory, Dual Channel, Podrška za AMD EXTended Profiles for Overclocking (EXPO), ASUS Enhanced Memory Profile (AEMP),
Slotovi	PCI Express x16 slot: 2x PCI Express 5.0 (x16 ili x8/x8 ili x8/x4/x4 modovi), PCI Express x4 slot: 1x PCI Express 4.0, PCI Express x1 slot: 1x PCI Express 3.0, PCI slot: 4, 2,
Skladišni interfejs	SATA priključci (ukupno): 4, SATA priključci: SATA III 6Gbps, Broj M.2 slotova: 5, Podržani M.2 formati: 3x 2242 / 2260 / 2280 (podrška za PCIe 5.0 x4 mod), 2x 2230 / 2242 / 2260 / 2280 / 22110 (podrška za PCIe 4.0 x4 mod), RAID: RAID 0, RAID 1, RAID 10, RAID 5,
Mreža	Žična mreža (LAN): 1x Realtek 5Gb Ethernet, Model: Realtek, Wi-Fi: Da, Wi-Fi standard: 2.4/5/6GHz frequency band, 2x2 Wi-Fi 7 (802.11be), Bluetooth: Da, Bluetooth verzija: 5.4,
Audio	Broj kanala: 7.1, Model: Realtek ALC4080 Codec, Napomena: Jack-detection, Multi-streaming, Front Panel Jack-retasking, Premium audio capacitors, Audio Cover, Supports up to 32-Bit/384 kHz playback, SupremeFX Shielding, Savitech SV3H712 AMP, Podrška za S/PDIF output, Gold-plated jacks, High quality 120dB SNR stereo playback output and 110dB SNR recording input, Impedance sense for front and rear headphone outputs,
Priključci na zadnjem panelu	DisplayPort priključci: Da preko USB-C, PS/2: 1 (tastatura ili miš), Ukupno USB priključaka: 10, Ukupno USB-C priključaka: 3, USB-A priključci: 2x USB 5Gbps (3.2 Gen 1), 5x USB 10Gbps (3.2 Gen 2), USB-C priključci: 1x USB 10Gbps (3.2 Gen 2), 2x USB 40Gbps (USB 4), RJ-45 (LAN): 1, Audio: 1x S/PDIF optički, 2x Gold-plated audio jacks, Ostali priključci: BIOS Flashback taster, 1x Clear CMOS dugme, 1 x Wi-Fi Module, Clear CMOS button(s), 1x Realtek 5Gb Ethernet port,
Unutrašnji priključci	Naponski priključci: 1 x 24 pin Main Power connector, 2x 8-pin +12V CPU Power connectors, 1x 8-pin PCIe power connector, USB-A: 2 x podrška za 4 USB 2.0 porta, 2 x podrška za 4 USB 5Gbps porta, USB-C: 2 x podrška za 2 USB 20Gbps porta, Audio: 1x Front panel audio, Ostali priključci: 4 x SATA 6Gb/s, 1 x 4-pin AIO Pump header, 1 x 4-pin CPU OPT Fan header, 1 x 10-1 pin System Panel header, 1 x 4-pin CPU Fan header, 3 x Addressable Gen 2 headers, 1 x Thermal Sensor header, 2 x 4-pin Chassis Fan headers, 1 x Start button, 1 x FlexKey button, 5 x M.2, ReTry taster, 1 x W_PUMP+ header, 3 x M.2 slot (Key M), 1x Alteration PCIe Mode Switch, 3x Addressable Gen 2 headers, 1 x SlimSAS connector, 1x LN2 Mode jumper, Safe Boot taster, Slow mode prekidač, BIOS prekidač, 1 x PAUSE Switch, 2 x RSVD Switch, 1 x 80 Light Bar jumper, 2 x BCLK button, 1 x 4-pin Extra Flow Fan header, 2 x 4-pin Full Speed Fan headers, 12x ProbeIt Measurement Points, 1 x RSVD4 header, Napomena: Za iskorišćavanje određenih internih konektora potrebni su dodatni bracket-i ili priključci na kućištu,
Ostale karakteristike	Podržane tehnologije: AURA Creator, AURA Sync, DIGI+VRM, SafeSlot, Q-DIMM, VRM heatsink design, M.2 Q-Latch, SafeDIMM, ASUS UEFI BIOS EZ Mode, ASUS CrashFree BIOS 3, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), Q-Antenna, M.2 heatsink, UEFI Bios, ProCool II, Fan Xpert 4, GameFirst, Q-Connector, MyHotkey, Q-Dashboard, Extreme Engine Digi+, ROG CPU-Z, AI Cooling II, CPU Socket lever protector, AI Overclocking, AI Advisor, PCIe Slot Q-Release Slim, M.2 Q-Release, Q-Code, M.2 Q-Slide, FlexKey, Metal backplate, Dolby Atmos, USB Wattage Watcher, TurboV Core, Extreme OC Kit, M.2 heatsink backplate, Pre-mounted I/O shield, ASUS EZ Flash, AIDA64 Extreme (1 year full version), HWiNFO, DriverHub, GlideX,
Fizičke karakteristike	Format: ATX, Dimenzije: 305mm x 244mm, Pakovanje: 1 x ASUS Wi-Fi antena, 4 x SATA 6Gb/s kabl, 1 x ASUS WiFi Q-Antenna, 1 x ROG DIMM.2 with heatsink, 1 x M.2 pad for ROG DIMM.2, 2 x M.2 screw package for ROG DIMM.2, 1 x ROG Memory Fan Kit, 1 x Q-connector, 3 x M.2 Q-Slide package, 3 x M.2 rubber package, 1 x ROG stickers, 1 x ROG Bottle Opener, 1 x USB drive with utilities and drivers,
Reklamacioni period	Reklamacioni period: 36 meseci,
